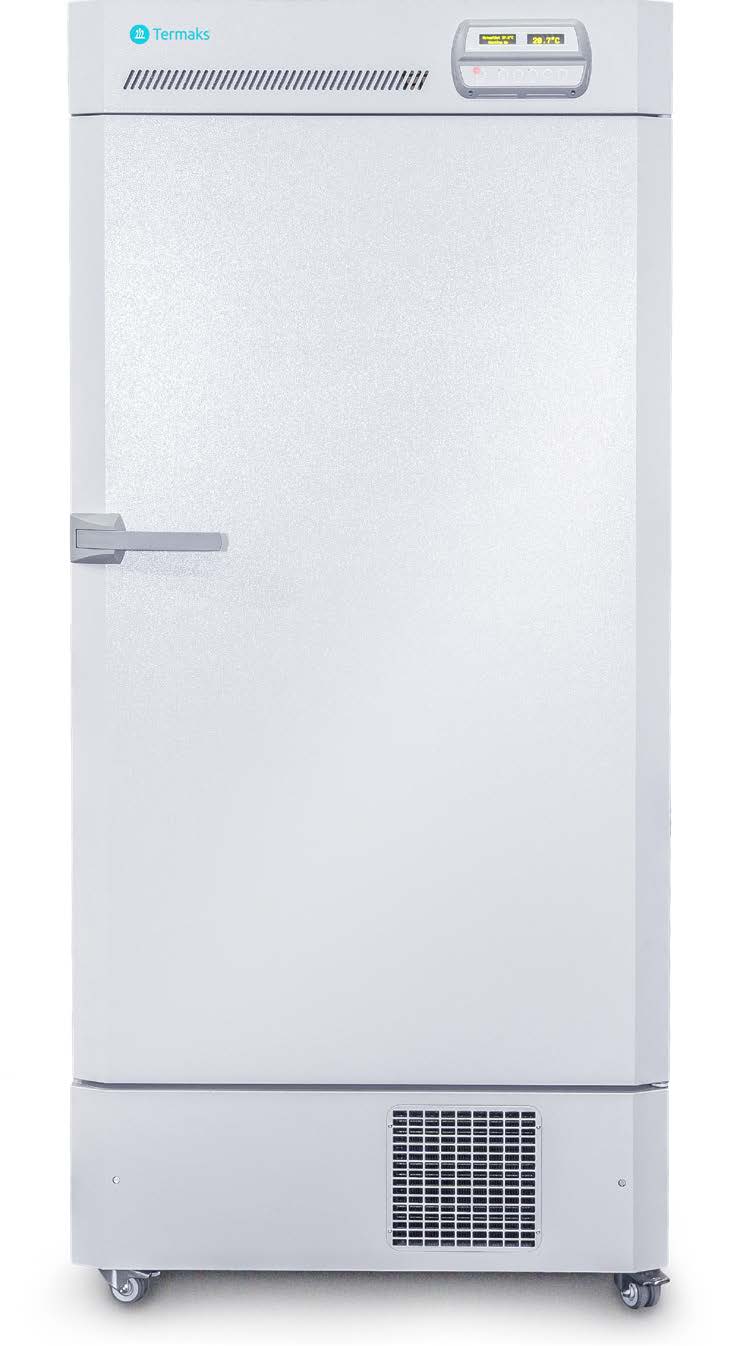

Cooling Incubators

Termaks compressor cooled incubators offers great performance and temperature stability. KB series is easy to use yet allowing extensive programmability and ramping options. The design gives rapid and precise temperature control, fast recovery and intelligent defrosting. Air circulation in the working chamber via Termaks sophisticated ventilation technology.

High lights

  • Temperature range -9,9°C to + 70°C
  • 2 model sizes (182 and 400 litres volume)
  • Forced air circulation
  • Safety thermostats and redundant system for maximum protection
  • Data logging and Remote support via Connect
  • Access ports for data logging with external sensors (optional)
  • Tripple glass front window with cover (optional)
  • Decontamination process
  • Castors, lockable for increased mobility

Termaks compressor cooled Incubator is ideal for incubating, breeding, storing or drying applications in working range -9,9°C to + 70°C. The newly developed control system allows fine tuning at any temperature in the range.

The control system is designed in accordance with EN61010 and has been EMC-tested in accordance with EN 60730-1 and EN 60730-2-14.

The control system is designed in accordance with EN61010 and has been EMC-tested in accordance with EN 60730-1 and EN 60730-2-14. Termaks cabinets can be controlled via CTS, PC or Gateway allowing data logging, event log and more to be stored. The system software can be updated directly on the PCB, through the SD-card slot and it is also possible to upload new setpoint files this way.

All Termaks Cabinets have a redundant system, that monitors the temperature sensor and makes sure that a single fault can’t cause a malfunction.

The KB series offers outstanding performance with great energy efficiency and environmental friendliness. The cooled incubators are state-of-the-art in application and protect the samples.

Making the best use of valuable space in your lab, Termaks incubators are designed with a very small footprint ratio compared to the interior volume. In addition, they are stackable with an optional stacking kit.

OLED display Explanatory text – simpler to operate
Touch buttons
Extended lifetime in humid surroundings
Extended temperature range
-9,9°C to + 70°C
Keypad with PIN code
Prevents undesirable settings
Potential free alarm contact
Can connect to external alarm system
Remote support and logging
via Connect
Variable fan speed


  • Precise performance
  • Real time programming
  • Intuitive and easy-to-use control panel
  • Air exchange rates and air valve position electronically controllable
  • temperature ramps programmable via display or Connect
  • high-quality, corrosion-resistant and chamber in stainless steel for easy cleaning
  • state of the art cooling for a precise and homogenous temperature control
  • Safety thermostats and redundant system for maximum protection
  • Reliable
KB 9182 KB 9400
Variation + / – ˚C 0,1 0,1
Deviation (spatial) + / – % 0,2 0,2
Readability / Setability ˚C 0,1 0,1
Range ˚C” -9,9°C + 70°C -9,9°C + 70°C
Sensor “K” Yes Yes
Controller PID PID
Standard hours / minutes 0-999 m 0-999 m
Real time program * Yes Yes
Alarm flashing / Acoustic Yes Yes
Alarm limit settable ˚C Yes Yes
Automatic safety setting ˚C Yes Yes
Fan speed steps 1/10 1/10
Door gasket silicone Yes Yes
Data port, MODBUS Yes Yes
Pot free alarm, output Yes Yes
Standard / Max pcs 3/14 3/22
Dimensions W × D mm 500 × 450 610 × 580
Max load pr shelf kg 20 30
Permitted total load kg 80 120
Nominal Power W 950 950
Nominal voltage V 230 230
Frequency Hz 50/60 50/60
Exterior W × D × H mm 680 × 580 × 1430 830 × 720 × 1840
Interior W × D × H mm 520 × 451 × 777 630 × 592 × 1073
Volume litres 182 400
Net weight kg 95 180
Shipping weight kg 120 210
Shipping volume dm3 865 1575
